Self Test System
The Ventilux Self-Test feature is a stand-alone integral testing solution for small to medium size installations.
Overview
The Self-Test module is able to perform a test sequence and report the health of the battery, lamp, or charger via a Bi-Colour LED. Pre-programmed to the testing requirements of EN50172 the Self-Test module offers a cost-competitive solution and peace of mind where automated testing is concerned.
Self Test Diagnosis Indicates
Communication Fault
Battery Fault
Lamp Fault
Charger Fault
Key Benefits
Intelligent Testing System
Cost Saving
Standards Compliant
- Intelligent testing module, which can monitor and test self-contained emergency luminaries.
- Provides easy to interpret visible fault and diagnostic indicators.
- Low-cost automated testing solution.
- Offers long-term cost saving on future maintenance costs.
- Ideal for small installations.
- Fully compliant to EN62034.
- Peace of mind that your system is fully compliant with national standards.
- The Self-Test also provides a solution where a CTU is not available.

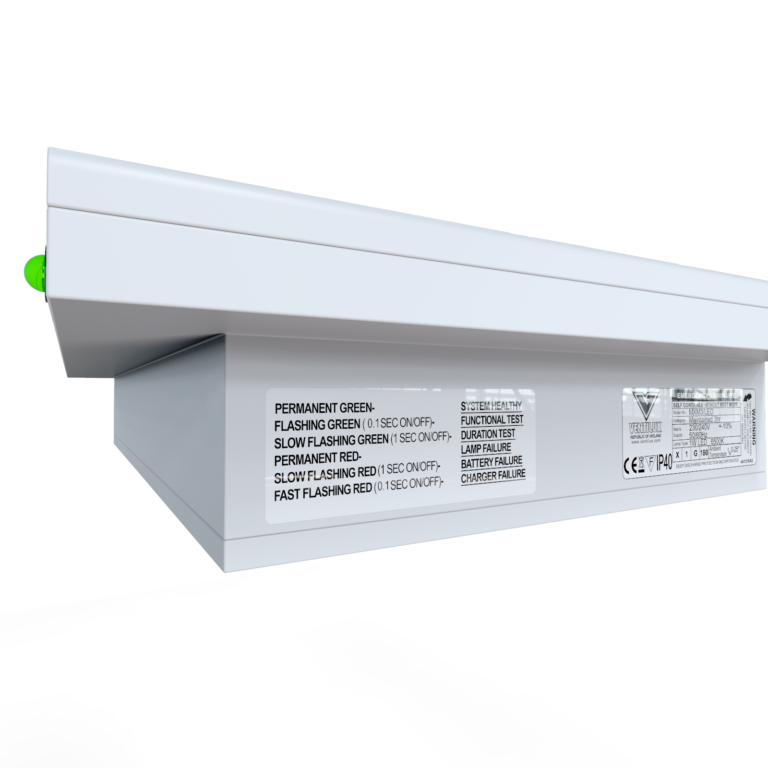

Self Test Diagnosis Indicators
Status
LED Indicator
Healthy
Permanent Green LED
Functional Test
Flashing Green LED
Duration Test
Slow Flashing Green LED
Lamp Failure
Permanent Red LED
Battery Failure
Slow Flashing Red
Charger Fault
Fast Flashing Red LED
