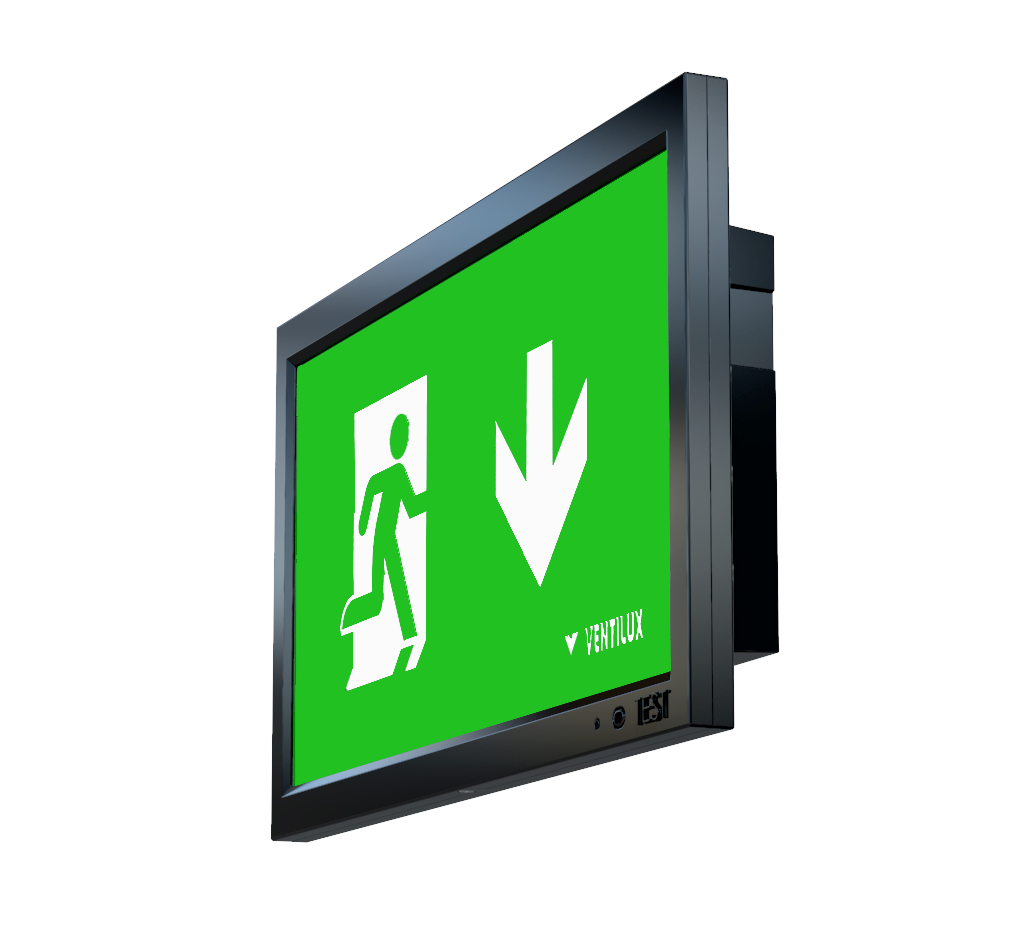

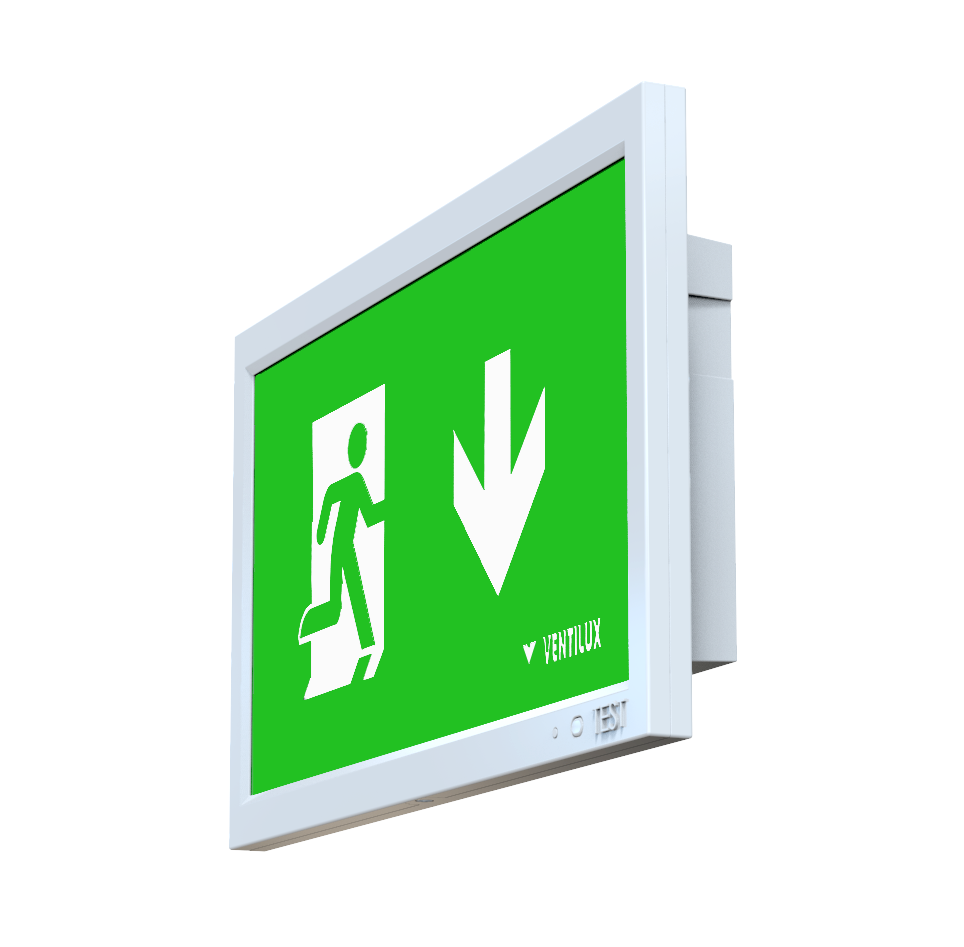

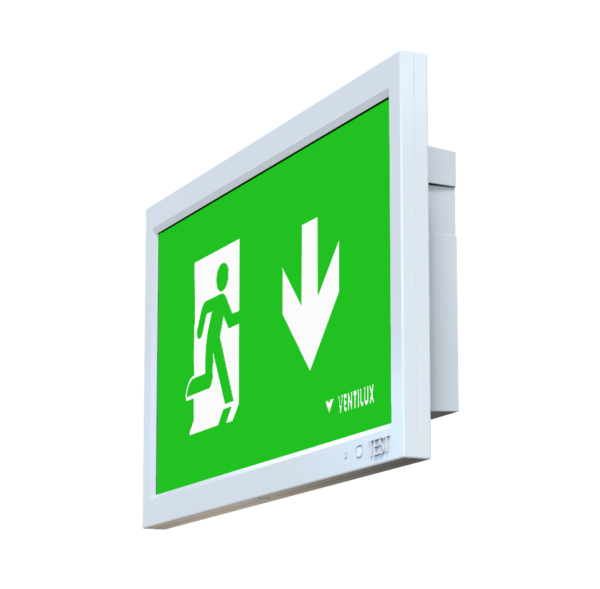

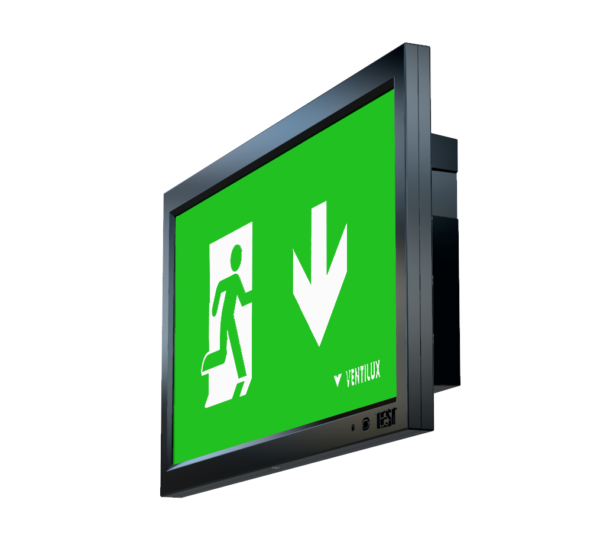

ATLANTIC EB
✓Self-test as standard.
✓Aesthetically pleasing, single-sided, wall-mounted EXIT luminaire.
✓Suitable for wall mounting.
✓Supplied with
×1 (up, down, left, and right) decals for flexibility on site.
Compatible Systems
Available Colour Options
*Other colours available on request
Product Highlights
IP20
30m Viewing DistanceSPEAK TO ONE OF OUR LIGHTING SPECIALISTS TODAY
Specifications
Downloads
Components & Accessories
Specifications
| LED | Panel - 14 white SM2835 LEDs. | ||||||||||||||||||||||||||||||||||
| Mounting Options | Wall Mounted | ||||||||||||||||||||||||||||||||||
| Viewing Distance | 30m | ||||||||||||||||||||||||||||||||||
| IP Rating | IP20 | ||||||||||||||||||||||||||||||||||
| Warranty | 6 Year as standard. Alternative warranty of 10 year available upon request. | ||||||||||||||||||||||||||||||||||
| Technical Specifications |
| ||||||||||||||||||||||||||||||||||
| What's in the box | Exit Signage - 1QTY Directional Panels - 4QTY (left, right, up, down) |     | |||||||||||||||||||||||||||||||||
| Dimensions | Please see the dimension drawing. |  |
Downloads
| Product Code | Colour | Spec Sheet | CE Cert | LDT | BIM | Spacing Tables |
|---|---|---|---|---|---|---|
| ATEBM3/LED/DA | White (Standard Colour) | View | View | Request | Request | Request |
**For specific technical documents please contact sales@ventilux.ie or chat with us on the website.
Components & Accessories
| Battries | Part Code | Self Contained | DALI | Netcom5XP | Self Test | OPW |
|---|---|---|---|---|---|---|
| ATEBM3/LED ATLANTIC LED EXIT BOX MAINTAINED (INC ALL PANELS) (WHITE) | N/A | 70252 | N/A | 70252 | N/A | |
| Board | ATEBM3/LED ATLANTIC LED EXIT BOX MAINTAINED (INC ALL PANELS) (WHITE) | N/A | 13171 | N/A | 13171 | N/A |
