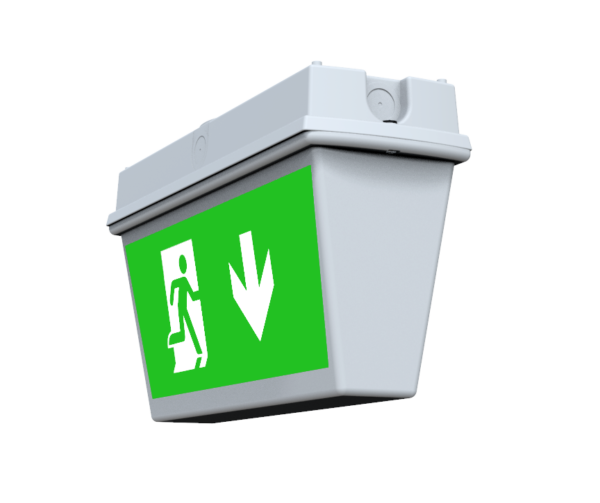

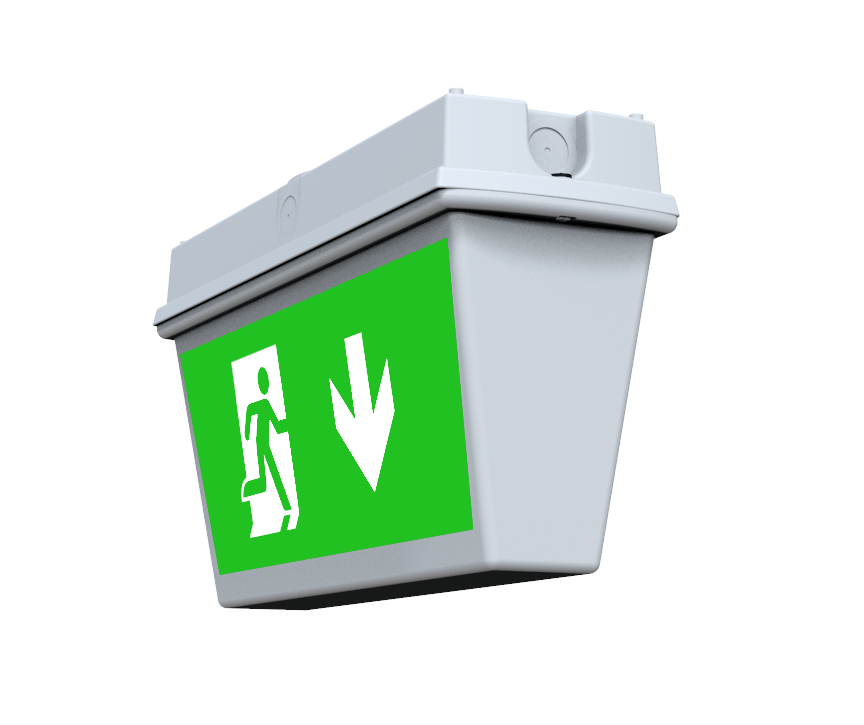

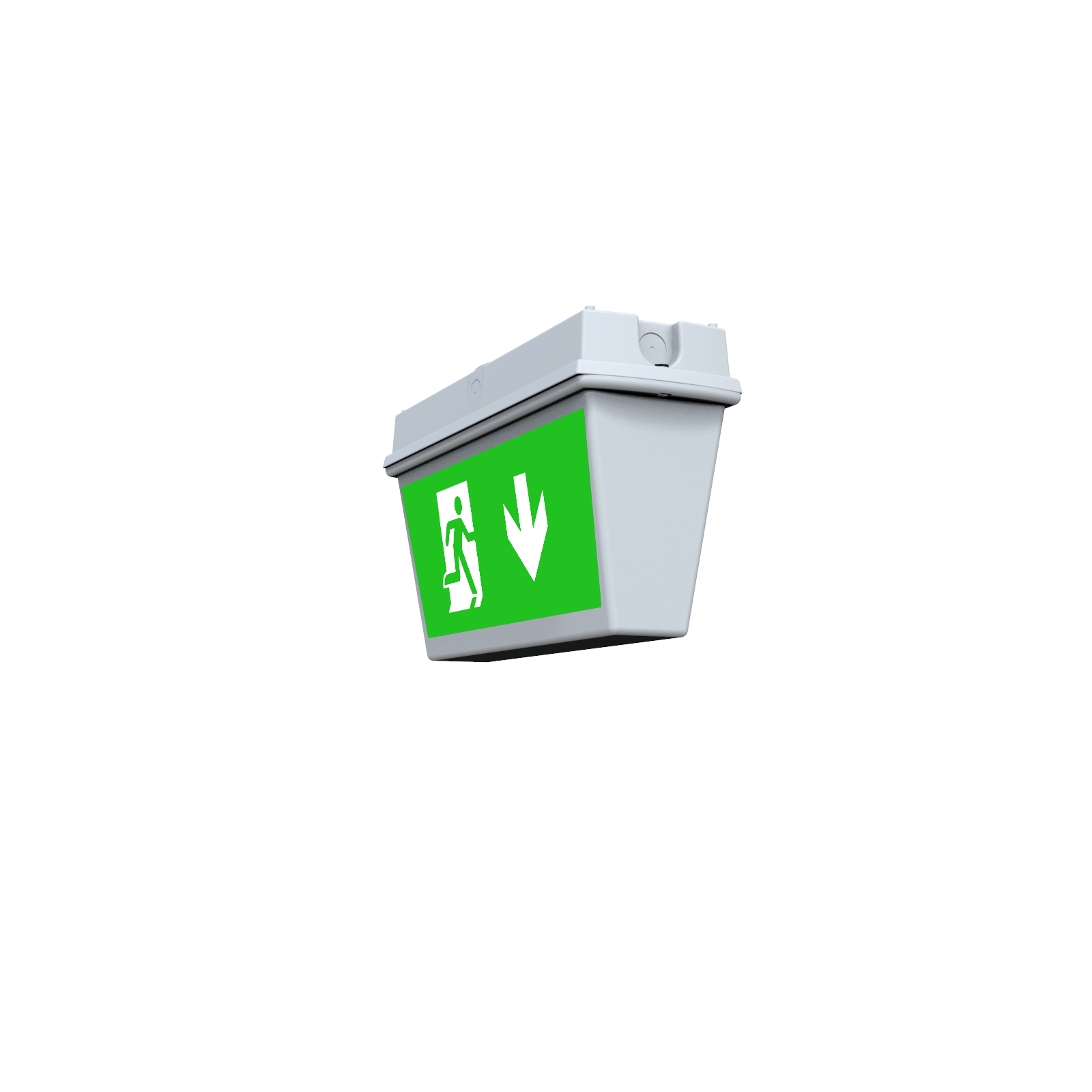

VISOR 120 LED DS
✓Competitively priced, LED double-sided EXIT luminaire.
✓Recessing kit available.
✓Maintained as standard system mode.
✓Available exit sign legend options.
Compatible Systems
Available Colour Options
Product Highlights
IP65
22m Viewing DistanceSPEAK TO ONE OF OUR LIGHTING SPECIALISTS TODAY
Specifications
Downloads
Components & Accessories
Specifications
| LED | 10 high output white LEDs. | ||||||||||||||||||||||||||||||||||||
| Mounting Options | Ceiling Mounted | ||||||||||||||||||||||||||||||||||||
| Viewing Distance | 22m | ||||||||||||||||||||||||||||||||||||
| IP Rating | IP65 | ||||||||||||||||||||||||||||||||||||
| Warranty | 6 Year as standard. Alternative warranty of 10 year available upon request. | ||||||||||||||||||||||||||||||||||||
| Technical Specifications |
| ||||||||||||||||||||||||||||||||||||
| Dimensions | Please see the dimension drawing. |  |
Downloads
| Product Code | Colour | Spec Sheet | CE Cert | LDT | BIM | Spacing Tables |
|---|---|---|---|---|---|---|
| VIM3/LED1202 | White (Standard Colour) | View | View | Request | Request | Request |
**For specific technical documents please contact sales@ventilux.ie or chat with us on the website.
Components & Accessories
| Batteries | Part Code | Self Contained | DALI | Netcom5XP | Self Test | OPW |
|---|---|---|---|---|---|---|
| VIM3/LED/120/DS VISOR 120 LUMEN D/SIDED EXIT IP65 MAINTAINED | 70229 | 70151 | 70229 | 70229 | Z1992 | |
| Boards | VIM3/LED/120/DS VISOR 120 LUMEN D/SIDED EXIT IP65 MAINTAINED | 13117 | 13171 | Z1949 | 13171 | 13117 |
| Accessories | Exit Panel Part Code Left Sticker- *01093 Down Sticker – *01094 Right Sticker – *01095 |
|---|
