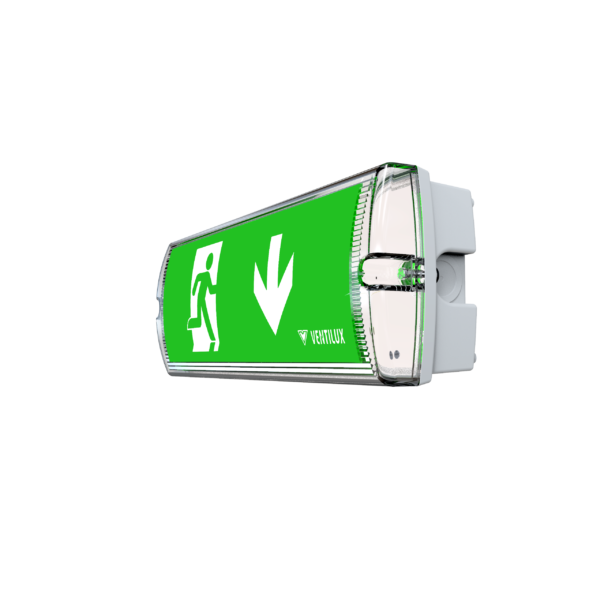

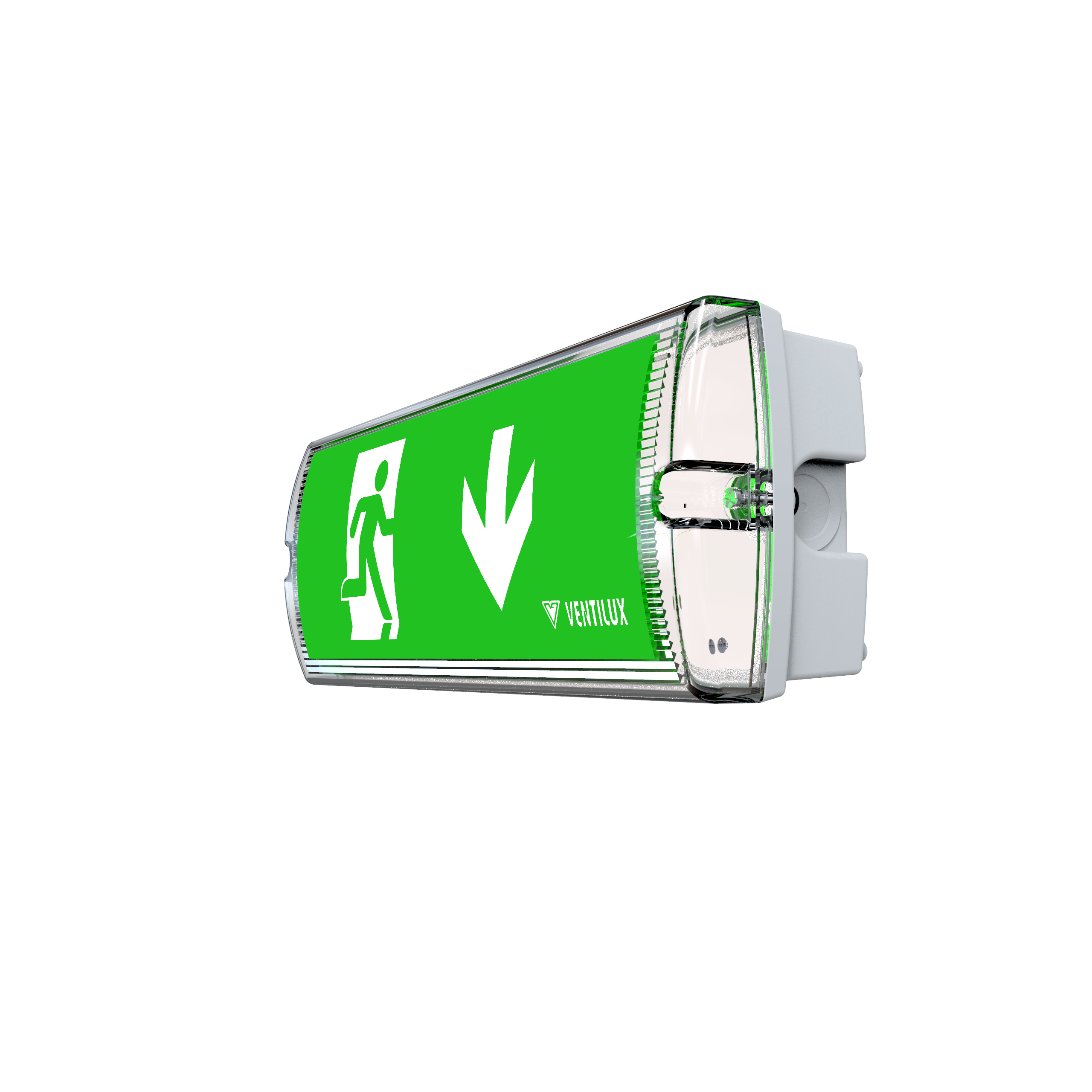

VISOR 120 EXIT
✓Bulkhead supplied with LED lamp.
✓Suitable for wall mounting.
✓Maintained as standard system mode.
✓Available exit sign legend options.
Compatible Systems
Available Colour Options
Product Highlights
IP65
22m Viewing DistanceSPEAK TO ONE OF OUR LIGHTING SPECIALISTS TODAY
Specifications
Downloads
Components & Accessories
Specifications
| LED | 8 high output SAMSUNG white LEDs. | ||||||||||||||||||||||||||||||||||||||
| Mounting Options | Wall Mounted | ||||||||||||||||||||||||||||||||||||||
| Viewing Distance | 22m | ||||||||||||||||||||||||||||||||||||||
| IP Rating | IP65 | ||||||||||||||||||||||||||||||||||||||
| Warranty | 6 Year as standard. Alternative warranty of 10 year available upon request. | ||||||||||||||||||||||||||||||||||||||
| Technical Specifications |
| ||||||||||||||||||||||||||||||||||||||
| Dimensions | Please see the dimension drawing. |  |
Downloads
| Product Code | Colour | Spec Sheet | CE Cert | LDT | BIM | Spacing Tables |
|---|---|---|---|---|---|---|
| VIM3/LED120/EXIT | White (Standard Colour) | View | View | Request | Request | Request |
**For specific technical documents please contact sales@ventilux.ie or chat with us on the website.
Components & Accessories
| Batteries | Part Code | Self Contained | DALI | Netcom5XP | Self Test | OPW |
|---|---|---|---|---|---|---|
| VIM3/LED/120/SS/EXIT VISOR 120 LUMEN B/HEAD IP65 MAINTAINED | 70229 | 70151 | 70229 | 70229 | Z1992 | |
| Boards | VIM3/LED/120/SS VISOR 120 LUMEN B/HEAD IP65 MAINTAINED | 13117 | 13171 | Z1949 | 13171 | 13117 |
| Accessories | Exit Panel Part Code Left Sticker- *01731 Down Sticker – *01752 Right Sticker – *01773 Up Sticker – *01794 |
|---|
